PP woven sack

Machine’s Feature

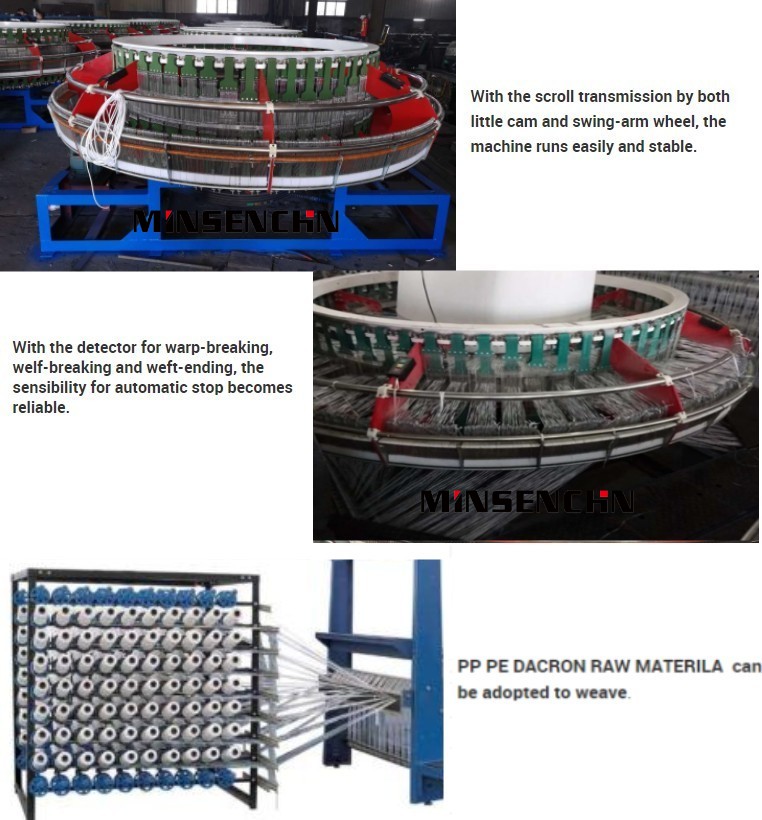

Performance and Characteristics Small can type and c0nvex table as well as swing-beam rolling wheel transmission is adopted making it easy and stable to run. Slide block and rod are climinated while the wearing parts are decreased. Rolling transmission is adopted in entire,which doesn’t need lubricant.

Tips: Due to machine’s upgrade, machine’s configuration, colors, surface may different, supplier keep the rights to modify.

Machine’s Specific:

It is configured with automatically stop detecting unit when meeting the situation of warp weft breaking.weft ending.The stoppage unit is sensitive and reliable It's an environmental product whose noise is not more than 80 dB(A). Low strength plastic yarn which is made from 100%, regenerated plastic can be adopted to weave It is high-efficient and cacrgycconomical.the highest rotation speed of the main motor can reach 180 r/min and the power is 1.5/2.2 kw which can save 10 thousand degree electricity compared with the traditional four shuttle circular loom whose power is 4 kw.

Machine’s Parameters

Number of shuttles	Lay-Flat width of fabric	Number of warp tapes	Max.number of weft insertion	Power of main motor	Max.weft bobbin Dia.	Max.warp bobbin Dia.	Length of warp/weft bobbin	Overall dimensions(LWH)
4PCS	250-550mm	640pcs	880ppm	1.5kw	100	140	230mm	850022002850mm
6PCS	300-750mm	720pcs	900ppm	2.2kw	100	140	230mm	950024002900mm
8PCS	750-1200mm	960pcs	800ppm	4kw	100	140	230mm	1200028003200mm

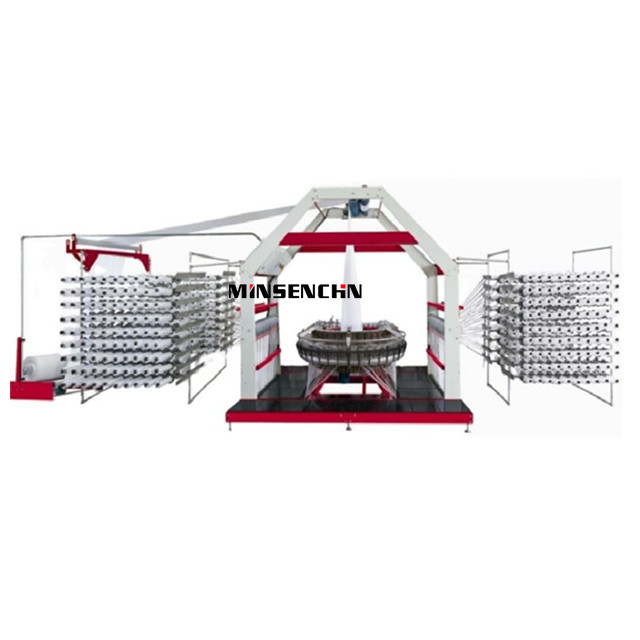

Full automatic Four shuttles circular loom For PP woven sack rice cement bag making machine and Woven bag
